Electric Meter Pulse Outputs
Need a Description
For electromechanical electric meters, and ideal for submetering applications. RIOTronics’ RegistRead device is supplied on calibrated, rebuilt, and warrantied meters, both single phase, and polyphase from Texas Meter and Device Company. Has 10 pulse/revolution digital Form A output from the highest resolution dial on the meter index.
For pricing and availability please contact Texas Meter and Device Company, at meteringproducts@texasmeter.com, or 254-799-0261

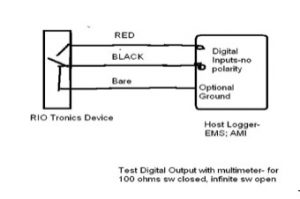

Output: Form A, Digital dry contact; optional “PS4” FET transistor output for power saving
Resolution: typically 1 kwh/pulse; 10 pulses/rev of drive dial of high resolution reading dial
Maximum Pulse Rate: Based on meter speed ; typically over 1 minute/pulse
Duty Cycle: 60% on, 40% off, ± 6%
Temperature: Operational from -40° to +240°F
Options for All Products: dual, separate outputs; FET type electronics; custom wire lead lengths; wire tamper sense
Replace meter in meter socket with fully calibrated meter having RIO Tronics pulse output attached.
RIO Tronics has a distributor network across the US and Canada, and can refer them via email or phone. Please send us a message using the form below or call us at 303-733-2600 for more information.
Call to Order
303-773-2600
For additional product details, distributor, or pricing information,
please email in the section at the right, or phone at the number above.
We can also answer questions about delivery times and product features and options.
For information on availability of outputs for your meters, please send photos of the meters, with close up photos of the dial sections, via the form at the right on this page.
